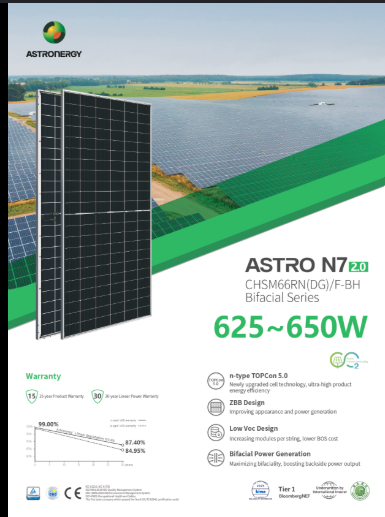

Astro 625_W BF

Description

Here is the clean, plain-text formatted list for your mechanical specifications, ready to copy and paste directly:

• Mechanical Specifications

• Outer Dimensions (L x W x H): 2465 x 1134 x 30 mm

• Cell Type: n-type mono-crystalline

• No. of Cells: 156 (6*26)

• Frame Technology: Aluminum, silver anodized

• Front / Back Glass: 2.0 + 2.0 mm

• Cable Length (Including connector): Portrait: (+)350 mm, (-)250 mm; Customized length

• Cable Diameter (IEC/UL): 4 mm² / 12 AWG

• Maximum Mechanical Test Load [1]: 5400 Pa (front) / 2400 Pa (back)

• Connector Type (IEC/UL): HCB40 (Standard) / MC4-EVO2A (Optional)

• Module Weight: 34.7 kg

• Packing Unit: 36 pcs / box (Subject to sales contract)

• Weight of Packing Unit (for 40’HQ container): 1304 kg

• Modules per 40′ HQ Container: 576 pcs

[1] Refer to Astronergy crystalline installation manual or contact technical departmen
