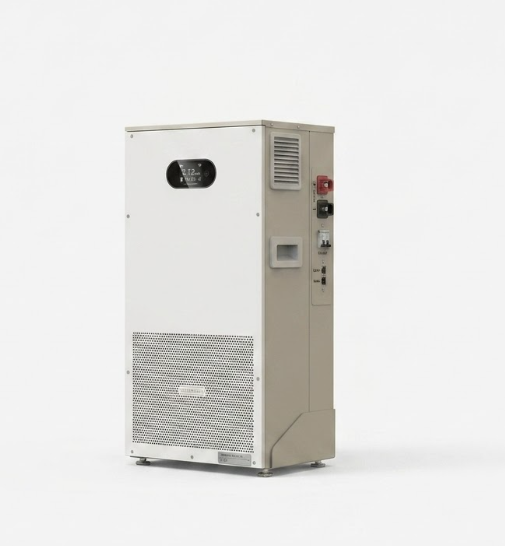

Dyness 16 kw Lithium Ion Battery

Description

• Model: PowerBrick SC

• Battery Type: LiFePO4 (LFP)

• Nominal Battery Energy: 16.076kWh

• Usable Battery Energy: 15.272kWh

• Nominal Capacity: 314Ah

• Nominal Voltage: 51.2V

• Operating Voltage: 44.8V~57.6V

• Recommended Charge & Discharge C Rate: 0.45C (140A)

• Max. Charge C Rate: 0.64C (200A)

• Max. Discharge C Rate: 0.64C (200A)

• Peak Discharge Current (25°C): 300A, 2min

• Recommended Charge & Discharge Power: 7.168kW

• Max. Charge Power: 10.24kW

• Max. Discharge Power: 10.24kW

• Depth of Discharge (DOD): 95%

• Charge Temp. Range: 0°C~55°C / -20°C~55°C (optional)

• Discharge Temp. Range: -20°C~55°C

• Net Weight: 116Kg

• Dimension [W/D/H]: 435/233/857mm

• Protection Level: IP20

• Communication: CAN/RS485

• Cycle Life [1]: >= 8000 Cycles

• User Interface: WIFI+APP, LCD

• Safety Protection: Built-in aerosol fire extinguisher

• Installation: Floor-mounted, Wall-mounted

• Regulating wheel (4pcs): 1kg, 80/80/80 (optional)

• Top cover: 2kg, 422/232/60 (optional)

• Expansion: Up to 50 units in parallel

• Warranty Period [2]: 10 Years

• Certification & Safety Standard: UN38.3 / IEC62619

• Compatible Inverters: SMA / Victron Energy / Ingeteam / Solis / GoodWe / Growatt / Solplanet / Luxpower / Deye / Apsystem etc.
