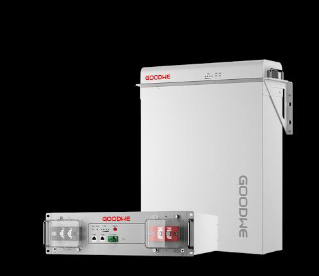

Goodwee 5kw Lithium Ion Battery

Description

• Model: LX A5.0-30

• Nominal Battery Energy (kWh): 5.12

• Usable Energy (kWh) [1]: 5

• Cell Type: LFP (LiFePO4)

• Operating Voltage Range (V): 43.20 ~ 58.24

• Nominal Charge Current (A) [2]: 60

• Max. Continuous Charge Current (A) [2,3]: 90

• Nominal Discharge Current (A) [2]: 100

• Max. Continuous Discharge Current (A) [2,3]: 150

• Max. Pulse Discharging Current (A) [2,3]: <200 (30s)

• Max. Continuous Discharging Power (W) [2,3]: 7200

• Communication: CAN

• Operating Temperature (°C): Charge: 0 < T <= 55 / Discharge: -20 < T <= 55

• Max. Storage Time: 12 Months (maintenance-free)

• Max. Operating Altitude (m): 4000

• Weight (kg): 44

• Dimensions (W x H x D mm):

  • 442 x 133 x 520 (Core part)

  • 483 x 133 x 559 (Maximum)

• Ingress Protection Rating: IP20

• Applications: On Grid / On Grid + Backup / Off Grid

• Scalability: Max. 30 in Parallel (150kWh) (Hand to hand / Combiner box / Busbar)

• Mounting Method: 19-inch standard rack, Floor-Mounted, Wall-Mounted

• Round-trip Efficiency [1]: >= 96%

• Cycle Life: 6000 @ 25 +- 2°C, 0.2C, 70%EOL

• Safety: IEC62619, IEC63056, N140

• EMC: EN IEC 61000-6-1, EN IEC 61000-6-2, EN IEC 61000-6-3, EN IEC 61000-6-4

• Transportation: UN38.3, ADR

• Environment: ROHS

[1] Test conditions: 100% DOD, 0.2C charge & discharge at 25°C +- 2°C at the beginning of life. [2] The system’s working current and power values will be related to temperature and State of Charge (SOC). [3] Max charge / discharge current and power values may vary with different inverter models. Note: Please visit the GoodWe website for the latest certificates.
